Parachute tether kit

SKU: PARATETHKIT Category:
Add to Quote

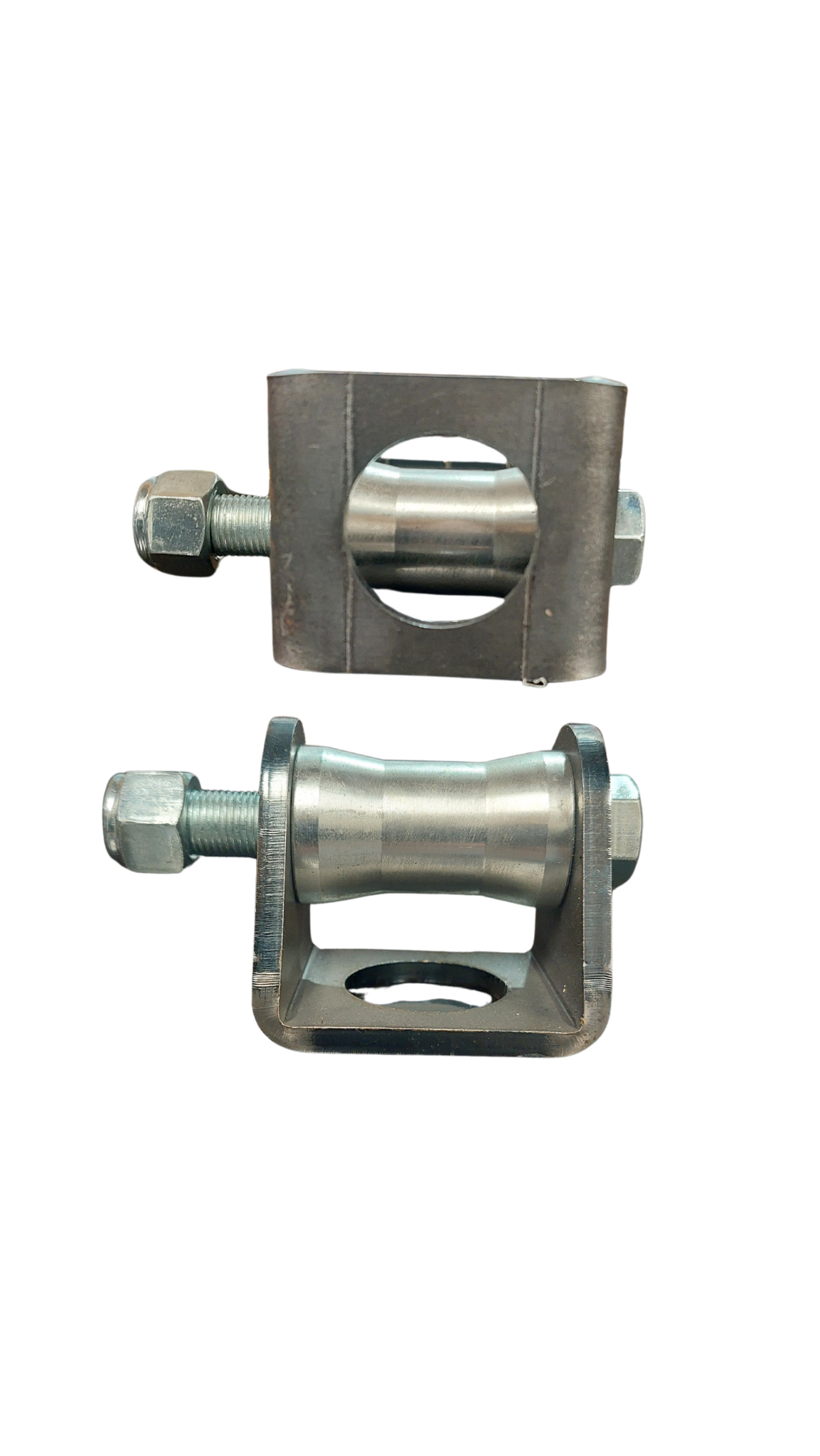

ARC have these extremely user friendly parachute chassis brackets in stock. They are laser cut and CNC folded from 5mm mild steel. The large hole in the rear flange accepts 1 1/4" tubing, whilst the bolt hole is 1/2" to meet ANDRA regulations. The clear span between the side webs is 50mm. The spindle is manufactured from 5083 aluminium and is available with the bracket as a package, or can be purchased separately. The minor diameter is 1" to meet ANDRA regulations and features a taper each side up to 30mm diameter to keep the tether centred to help reduce chafing.

Additional information

Weight 0.373 kg
Dimensions 10 × 5 × 6 cm
